CAPABILITIES CALCULATION

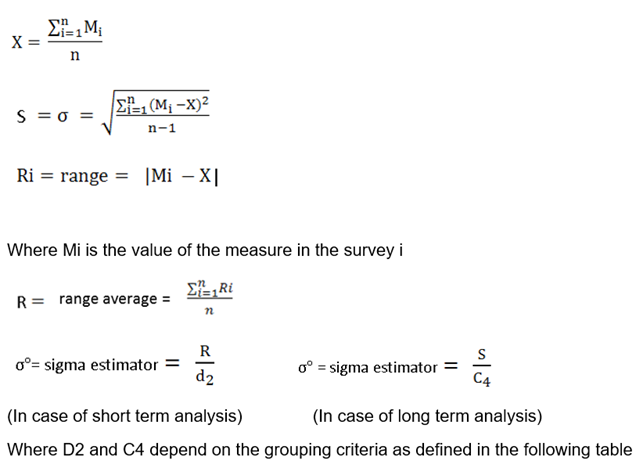

The key central SPC page calculates the capabilities of a measure code using the following formulas:
Where LSS is the upper project limit (MaxValue), LIS is the lower project limit (MinValue)

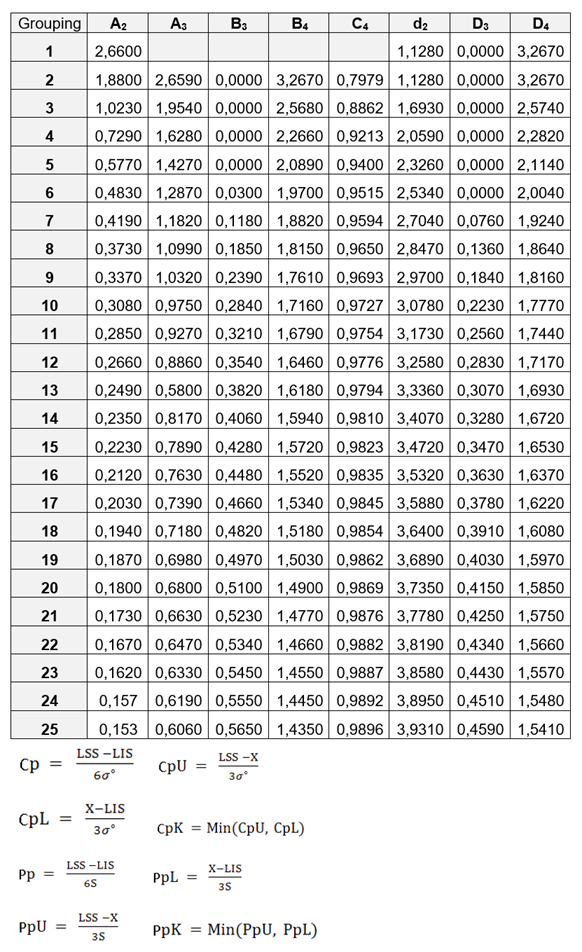

The following charts depend on the grouping criteria:
- Grouping = 1
- Grouping >= 2
