ARCHITECTURE

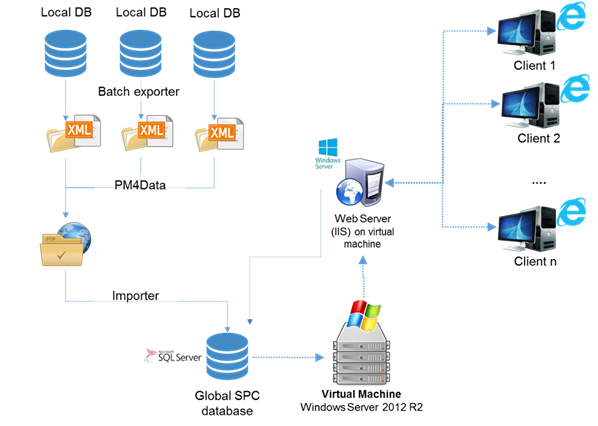

TThe system is made of a central repository where all the measures collected locally are store in the same database. The central repository can be feeded in two different modes:
- Automatically using interval managed by the “feeder” system trough xml files. As soon as the files are transferred by PM4Data into the destination folder, an importing procedure add the rows of each file into the central database. The local owners decide what to transfer to central repository, according to central quality department.
- Manually using the “upload data” menu. This way the system is updated as soon as the upload procedure ends

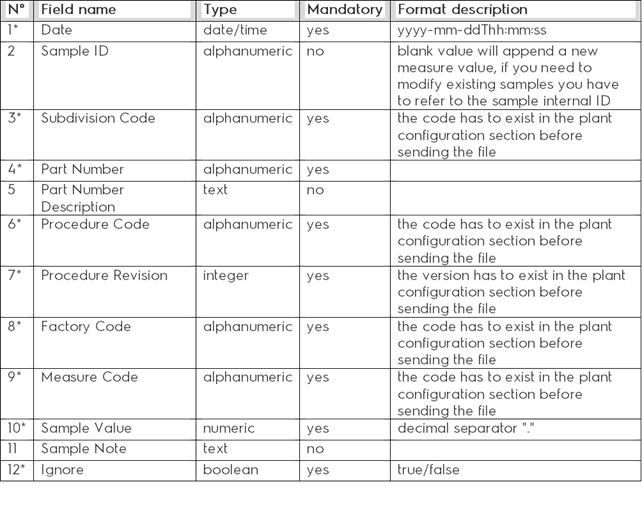

Both using the automatic or the manual feeding procedure the xml you’re going to manage has to be compliant to the following structure (mandatory fields marked with *):
