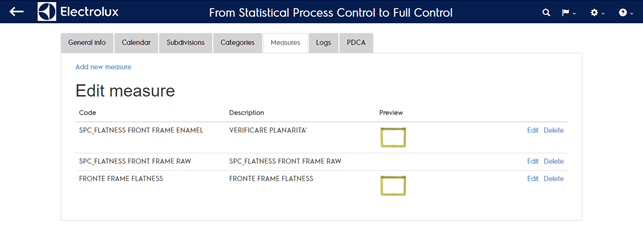

MEASURES
The measure is finally what the system aims to control and report. Each measure have to exist before any value can be uploaded. To define a measure you have to specify:
- Measure code
- Measure description
- Default grouping to be used to calcutate capabilities in every position needed (trends, parameter home page, capability full page). The system manages grouping up to 25.
- Default analysis type to be used to calcutate capabilities in every position needed (trends, parameter home page, capability full page)
- Image to be shown in capability full page and parameter home page

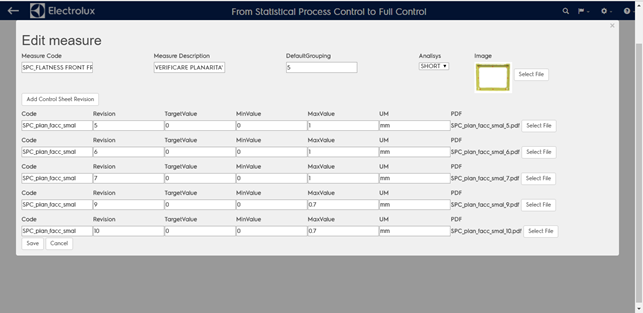

In addition to that you have to define every procedure using wich samples have been collected over time. That involve to define:
- Procedure code
- Procedure revision
- Target value
- Lower bound (absolute value to be subctracted to target value)
- Upper bound (absolute value to be added to target value)
- Measure unit
- PDF file of the procedure/revision
Since the samples feeded are collected linked to the procedure/revision you have to ensure that it exists before sending data claiming that specific procedure/revision
