GROUPING = 1

Return to main menu

LSC_XLSCX = UCLX = upper control limit for X Chart = X_mXm + A₂A2 * R
LIC_XLICX = LCLX = lower control limit for X Chart = X_mXm - A₂A2 * R where X_mXm = X

LSC_RLSCR = upper control limit for R Chart = D₄D4 * R LIC_R LICR = lower control limit for R Chart = D₃D3 * R

The x and y points of the gaussian chart are calculated as follows:

x = t * S + X

t is a parameter that goes from -4 to +4 step 0,1

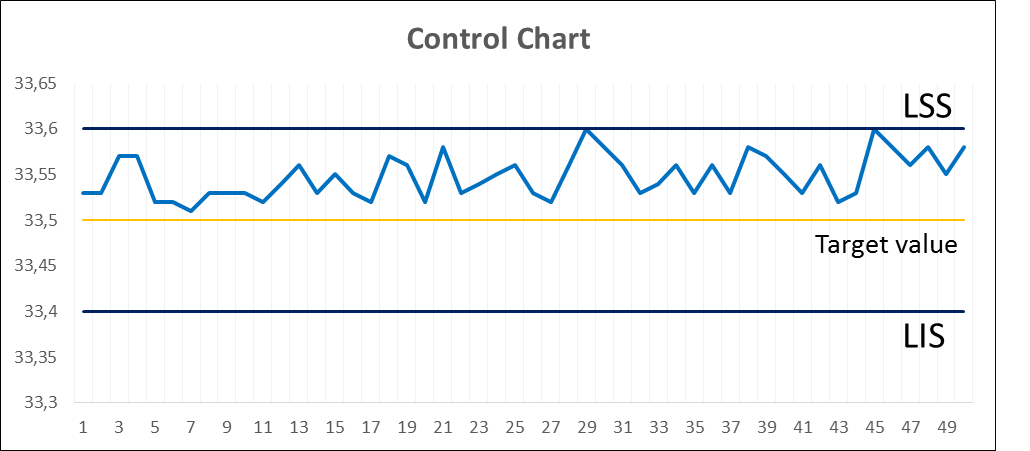

It displays the detected values in a chart together with Project Upper Limit (LSS), Project Lower Limit (LIS) and the Target Value.

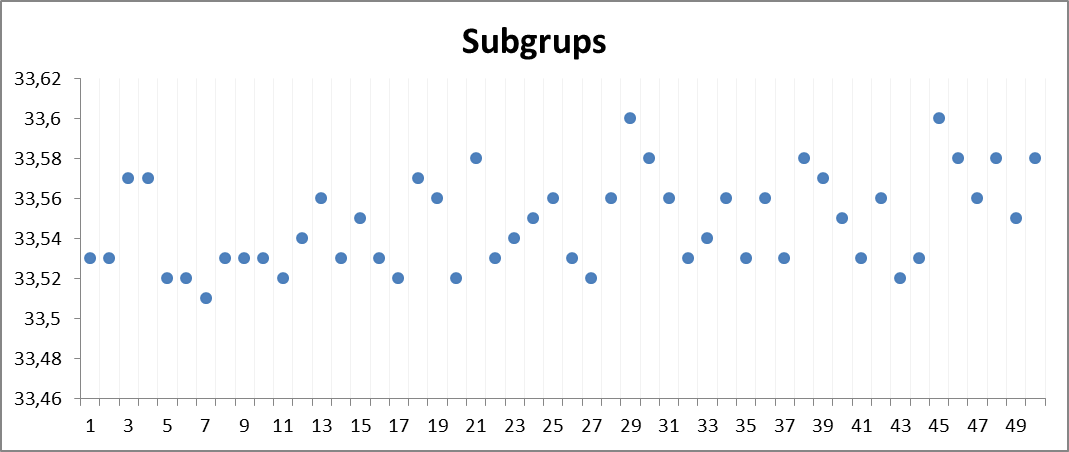

It displays graphically the values included in each subgroup. When the grouping criteria is 1 it overlaps to the control chart.
